Product details

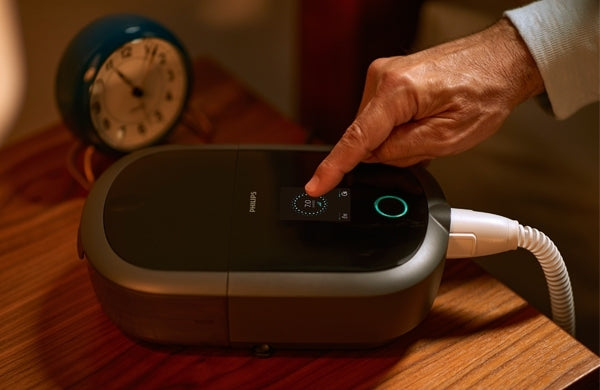

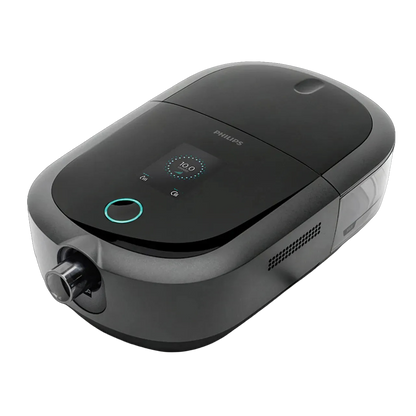

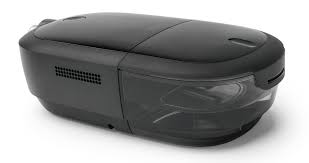

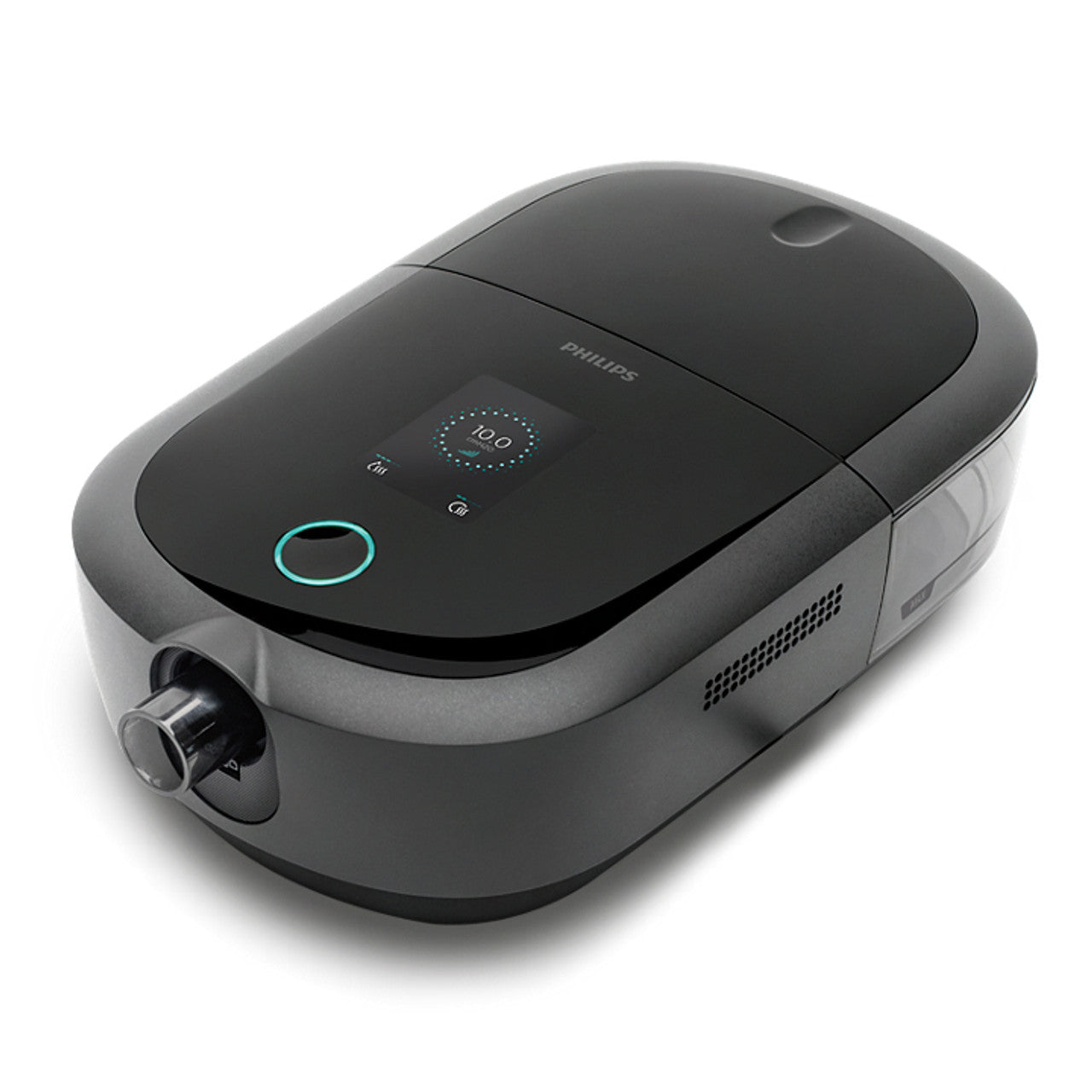

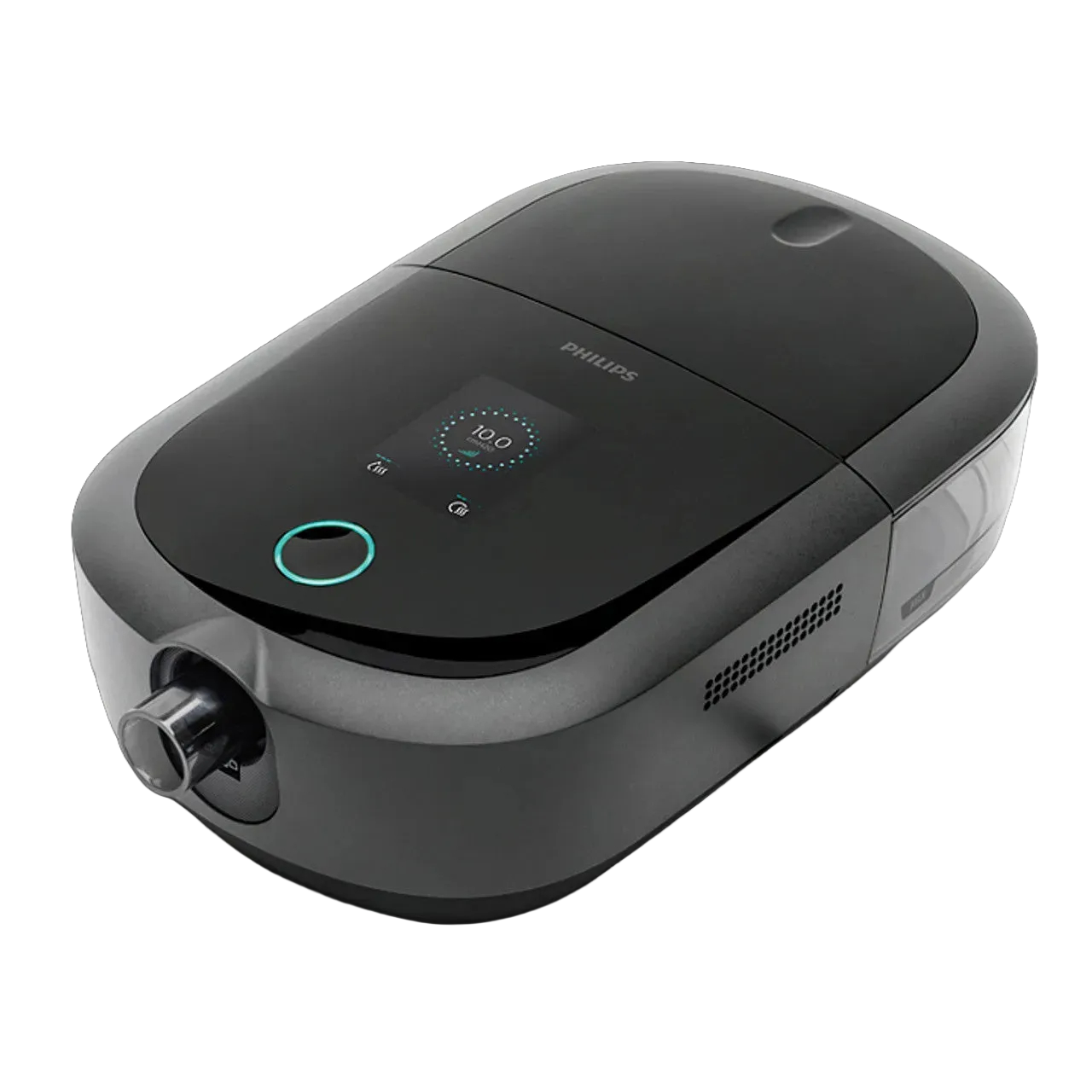

Philips DreamStation 2 Auto CPAP Advanced
The Philips DreamStation 2 Auto CPAP Advanced is a modern therapy device for the treatment of obstructive sleep apnea (OSA). The system combines automatic pressure adjustment with an integrated humidifier and supports comfortable and reliable respiratory therapy in everyday use.
The intelligent pressure regulation automatically adapts the device to changing breathing conditions during the night. Comfort features such as gentle pressure support when breathing in and out, as well as the Ramp-Plus function make it easier to fall asleep and contribute to stable, comfortable therapy. The integrated warm-air humidifier also provides individually adjustable humidification of the breathing air.
The DreamStation 2 stores therapy-related data for evaluation and supports structured therapy monitoring.

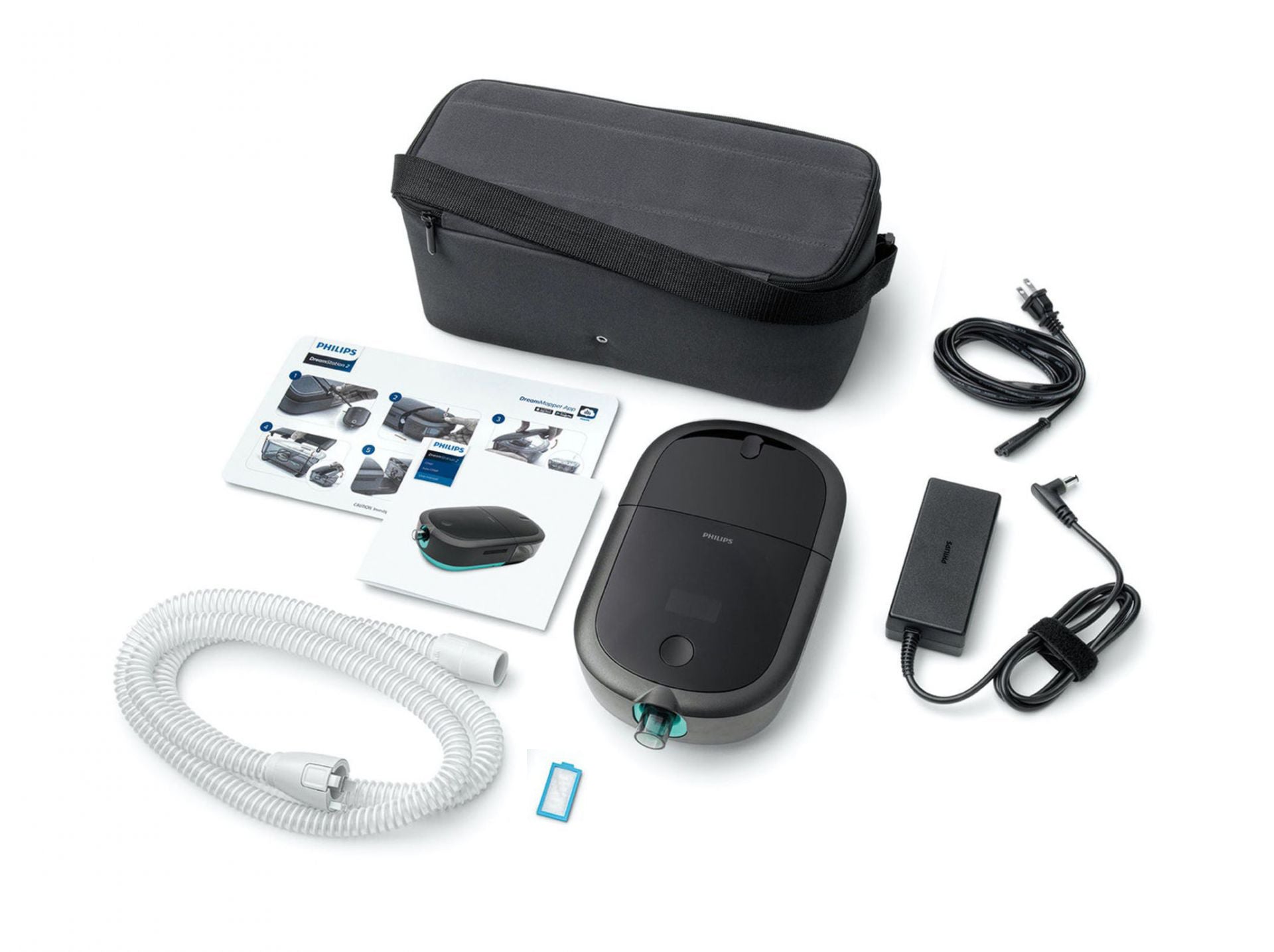

Scope of delivery
Philips DreamStation 2 device

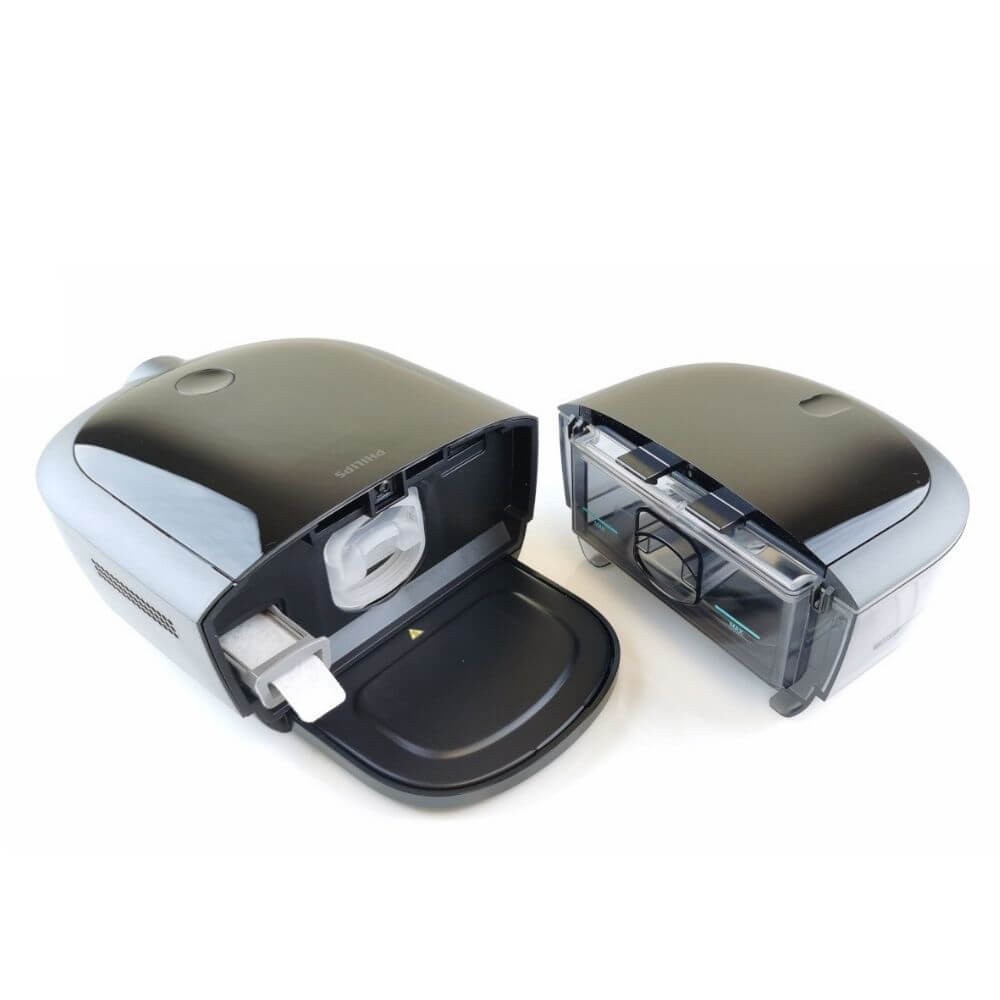

Humidifier
Hose
Power cord
Power supply
User manual
Quick guide
Carrying case
Reusable filter
Disposable special filter
* An SD card is not included.
Specifications
Operating mode: APAP or CPAP
Compatible with humidifier: Yes (DS2 humidifier)
Compatible with heated hose: Yes (Philips HT15)
Auto Start/Stop: Yes
Ramp function: Yes
Exhalation pressure relief: Yes
Telemedicine function: Yes
Dimensions & weight
Weight: 1040 g
Height: 8,5 cm
Width: 15,9 cm
Depth: 27,4 cm
Technical specifications
Hose connection: 22 mm
Sound power level: 35 dB(A) (±2 dB)
Sound pressure level: 27 dB(A) (±2 dB)
Treatment pressure: 4–20 cm H₂O (4–20 hPa)
Modes:
AutoCPAP, CPAP
Flex comfort modes:
C-Flex+, A-Flex
Additional features:
Smart Ramp, EZ-Start, CPAP-Check, AUTO-Trial
Pressure range:
4–20 cm H₂O
Flex sensitivity:
Level 1 to 3
Ramp Plus time:
15 / 30 / 45 minutes
Ramp start pressure:
4–10 cm H₂O or OFF
Humidification:
Integrated humidifier with automatic setting, optional heated tube
Data storage:
Display: compliance, activity, leak, pressure, Cheyne-Stokes
Average values: 1, 7 and 30 days
SD card: > 1 year of data storage
Internal memory: up to 6 months
Operating conditions
Operating temperature: 5 °C to +35 °C
Storage temperature: −20 °C to +60 °C
Device features
Dimensions: 15,8 × 8,4 × 25,6 cm (W × H × D)
Weight: Device 1,04 kg / power supply 0,29 kg
Device controls: Color LCD touchscreen with push button
Noise level: 27 dB(A) with humidifier (measurement uncertainty ±2 dB)
Connectivity: Integrated modem and Bluetooth
Altitude compensation: Automatic
Power supply: 80 W / 12 V / 6,67 A
Power supply: 100–240 V AC, 50/60 Hz, 2,0–1,0 A
Maintenance: Maintenance-free
Important information
Please note that this is a hygiene product. In principle, an exchange is only possible if the packaging is unopened and undamaged. / Please note that this in an hygienic article. As such, returns are only accepted for articles with unopened packaging.
When purchasing from outside the EU, please note that additional import duties may be payable in your home country. / Please note that additional costs for importing into your home country can occur when purchasing from outside the EU-Zone.

____________
DOWNLOADS
Download the manual here:
Specifications & variants
- Brand
- Philips Respironics GmbH
- Product type
- PAP Devices
| SKU | EAN / barcode |
|---|---|
| DEX520H13C | 606959062986 |
