Product details

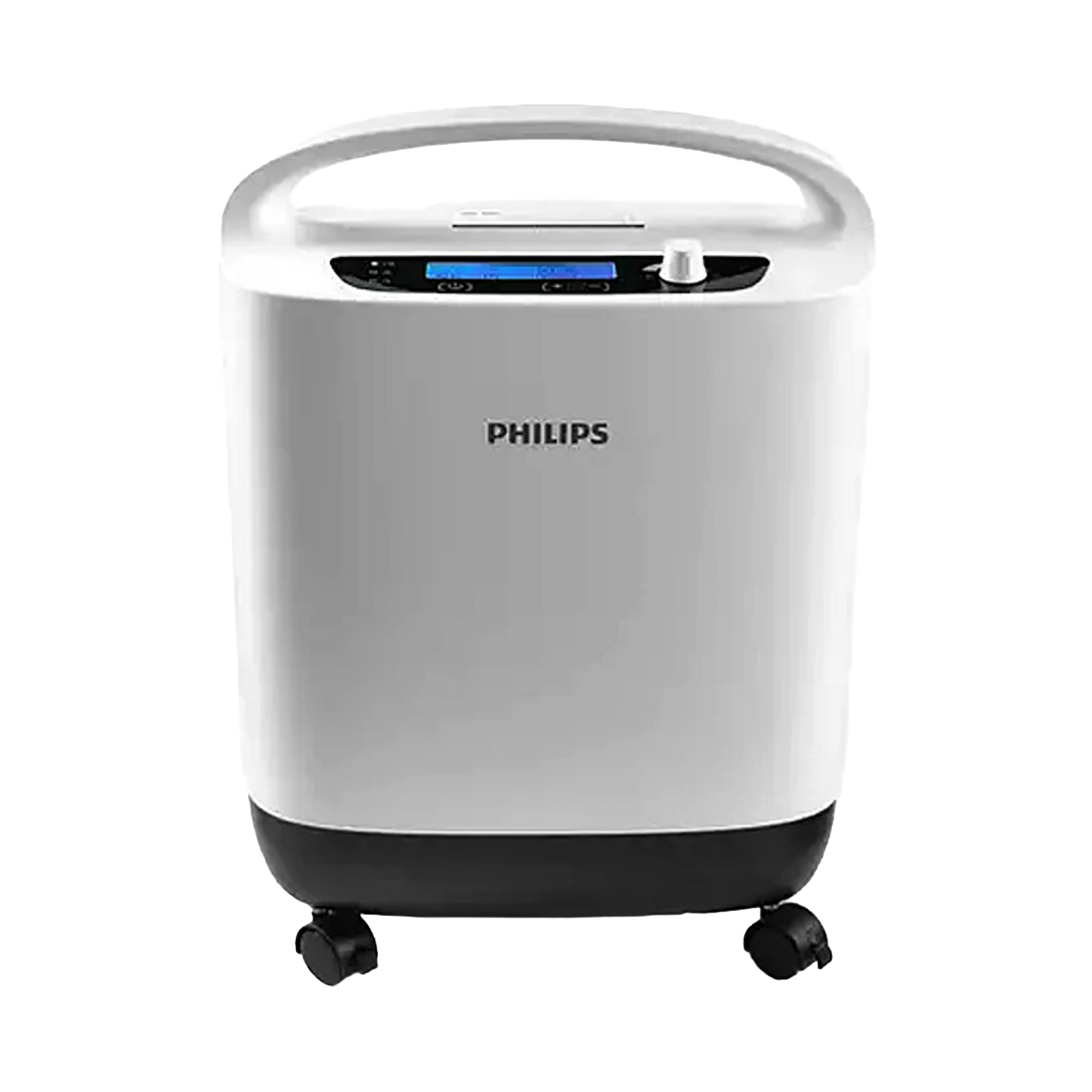

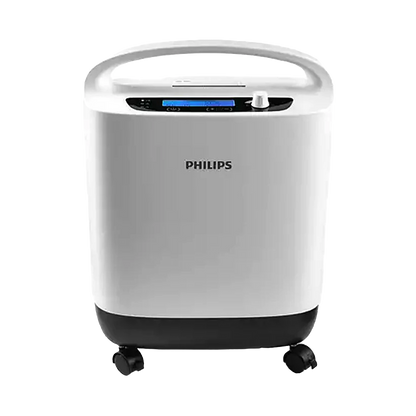

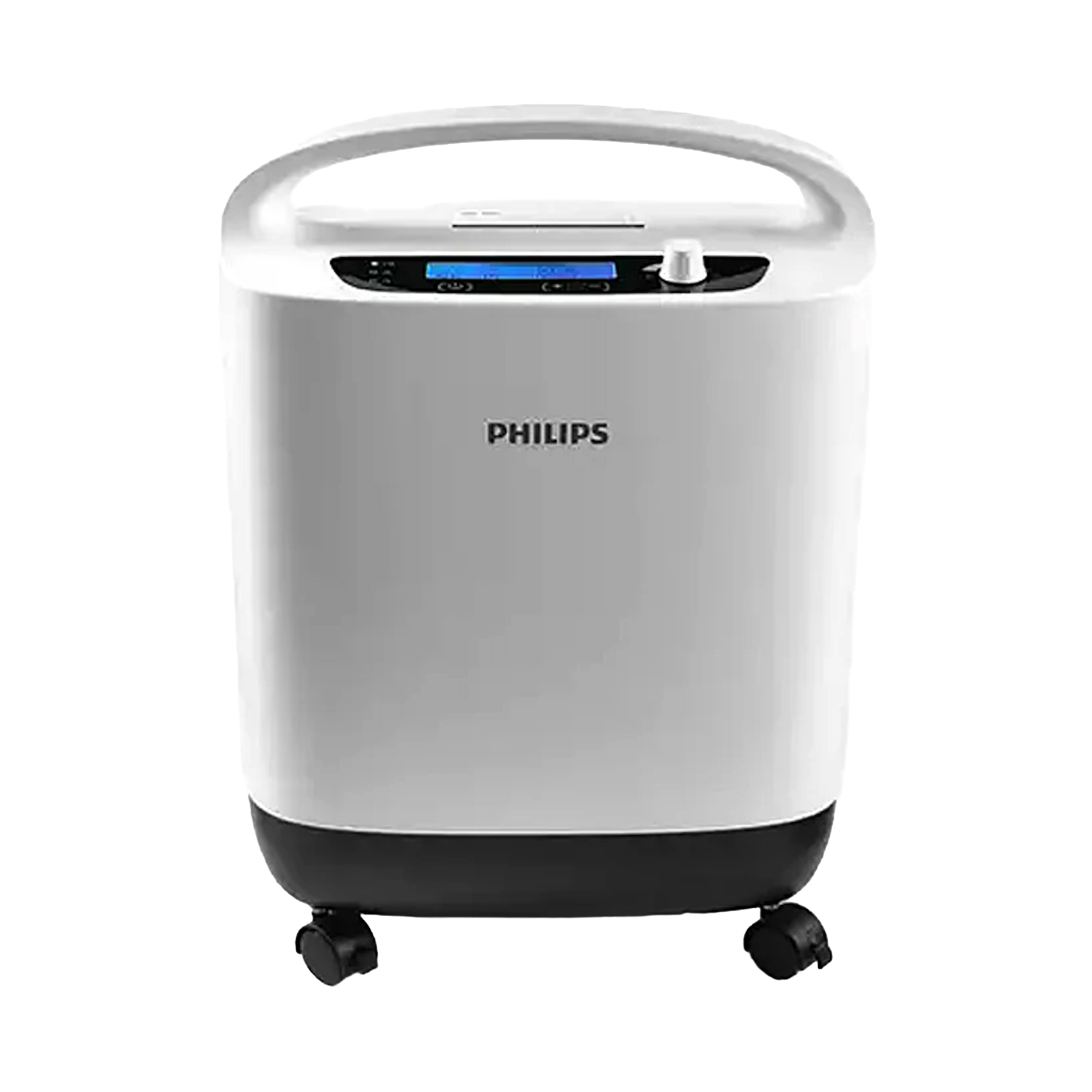

The Oxygenate 5 oxygen concentrator provides a reliable oxygen supply for patients who require continuous oxygen therapy. The device is designed for use at home and in medical facilities and delivers a stable oxygen concentration while operating quietly and efficiently.
With a flow rate of 0,5–5 L/min and an oxygen concentration of 93 % ±3 % the Oxygenate 5 ensures a constant oxygen supply. The device is suitable for adults and children aged 3 years and older and supports comfortable, long-term oxygen therapy.
Thanks to its compact design with integrated wheels, the device can be easily moved around the home or care environment and positioned flexibly.
A multi-stage filtration system ensures a clean air supply and stable oxygen production throughout operation.
Benefits at a glance
• Oxygen flow 0,5 – 5 l/min
• Oxygen concentration 93 % ±3 %
• Quiet operation (< 40 dB(A))
• Suitable for Continuous operation
• Multi-stage filtration system for a clean air supply
• Suitable for adults and children aged 3 years and older suitable
• Compact design with Transport castors
• Easy operation for use at home
Technical specifications
Dimensions & weight
Dimensions: 41 × 26,5 × 56,6 cm (±2 cm)
Weight: 18 kg
Noise level: < 40 dB(A)
Protection class: IP21
Operating mode: Continuous operation
Electrical specifications
Power supply: 230 V / 50 Hz
Power consumption: < 360 VA
Fuse: F5AL250V
Electrical safety classification:
Type BF applied part, Class II, not an AP/APG device
Oxygen output
Oxygen delivery pressure: 30 – 80 kPa
Oxygen concentration: 93 % ±3 %
Flow rate: 0,5 – 5 l/min
Filtration system
The Oxygenate 5 features a multi-stage filtration system that supports a clean air supply and reliable oxygen production:
-
Primary and secondary air filters
-
Silencer intake filter
-
Sieve filter
-
Tower intake and exhaust filter
-
Oxygen tank and delivery filter
-
Humidifier (“Perlan”) filter
✔ Ideal for Home oxygen therapy
✔ Stable oxygen concentration for long-term use
✔ Quiet and energy-efficient operation
Features
Patient comfort
Patient engagement
Customer service and support
Designed with 9 filter stages
Supporting durable medical equipment (DME) providers and clinical teams in patient care
Specifications & variants
- Brand
- Philips Respironics GmbH
- Product type
- Respiratory Therapy
| SKU | EAN / barcode |
|---|---|
| 1156380 | 06934822533429 |
Documents & downloads
Need help with this product?
Our customer service team can help with questions about products and accessories.
